|date||11 FEB 86 (32 years old)
* among the earliest model M PC keyboards
|IBM logo||silver logo with black text|
|cable||removable, coiled cable, black AT cable standard length (used)
|key caps||removable (two piece, key stem + key cap)|
|key switches||clicky = buckling spring|
|Designed when “real” typing on a quality keyboard was a required skill to use a $4000 IBM personal computer. PC mag link
(pre-dates the then new mouse-click and graphical user interface operating system later to be known as Microsoft Windows 3.1 and 95)

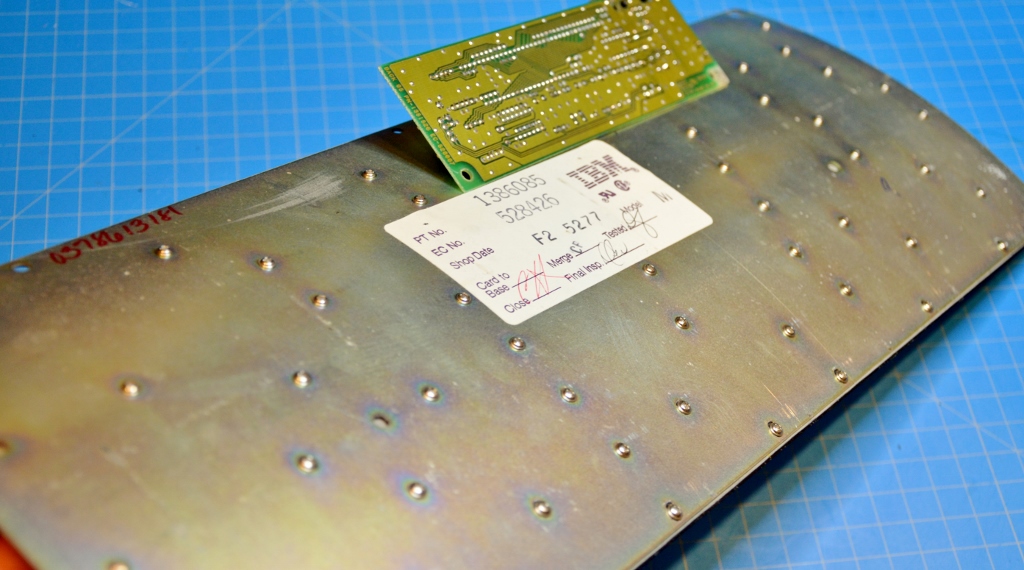

|condition||Keyboard pre-selected as good candidate and passed initial testing to confirm mechanical condition. Upper keyboard case disassembled and individual 101 keys have been removed and fully cleaned by hand. Inspection of interior plate. All 56 plastic rivets drilled out and replaced with M2 precision screws to restore internal integrity. Interior plate vacuumed to remove foreign debris. Keyboard re-assembled and re-tested post-cleaning. Individual photography of rear label.|
|comments||Very nice IBM model M keyboard with rare internal extra heavy-duty shiny plate and silver IBM logo. Has additional stabilizer bars under numeric + and Enter keys in addition to stabilizer under space bar.|
|comments||This keyboard is tested to work 100%. The keyboard assembly has been confirmed to be in functional, operational condition.|

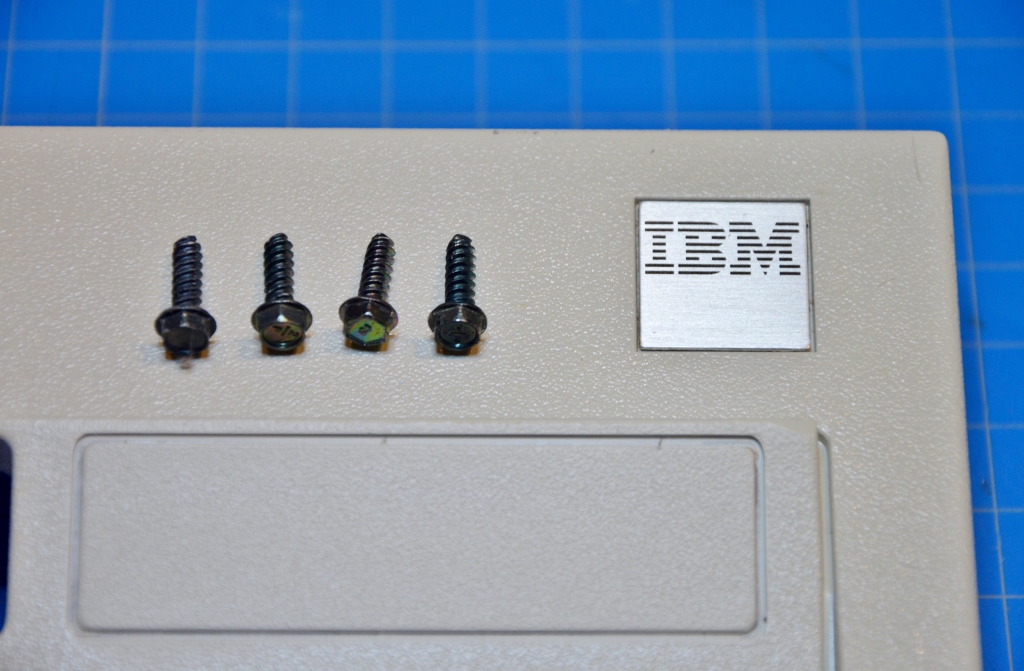

|comments||All 56 plastic rivets have been expertly replaced with M2 screws for ensure for a tight and crisp keyboard feel.
Can be used with modern PCs, with addition of 5-pin DIN AT to ps/2 passive adapter and ps/2 to USB active converter.
